100W MoSi2 Heating Element 220V Moly Disilicide Heating Elements

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : Spark Industry (Henan) Co., Ltd.

Delivery Time : 15 work days

Packaging Details : WOODEN CASE

Diameter : 6mm

Power : 100W

Thermal Expansion Coefficient : 4.5×10^-6/℃

Features : High temperature resistance, low thermal expansion, long service life

Thermal Conductivity : 27W/m·K

Maximum Temperature : 1800℃

Surface Load : 6W/cm²

Density : 5.5g/cm³

Resistance : 1.2Ω

Material : Mosi2

Shape : U type

Heating Zone Length : 100mm

Voltage : 220V

Application : High temperature heating

Place of Origin : China

Brand Name : SONGYU

Contact Now

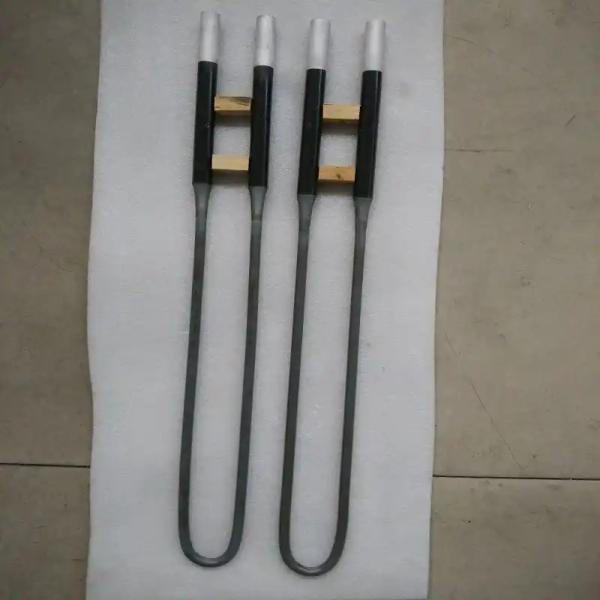

U type Mosi2 Heating elemet

The resistance of silicon molybdenum rod components does not change with use, that is, they do not age, so new and old components can be mixed for use. The mechanical properties of molybdenum disilicide components are the same as other ceramic products, and they are brittle materials that are prone to fracture at high temperatures, which poses certain difficulties for transportation and installation. But as long as it is installed reasonably and used properly, it can be avoided. The product structure and marking material grade of molybdenum disilicide electric heating elements: 1700 type, 1800 type. The company's leading products, 1700 and 1800 molybdenum disilicide heating elements, are high-tech products jointly researched and developed by Chinese and foreign experts. They can be produced in special shapes and sizes according to customer requirements.

Corrosion Resistance Good
Package Wooden case
Material Molybdenum disilicide (Mosi2)
Diameter 6mm
Power 300W
Voltage 220V
