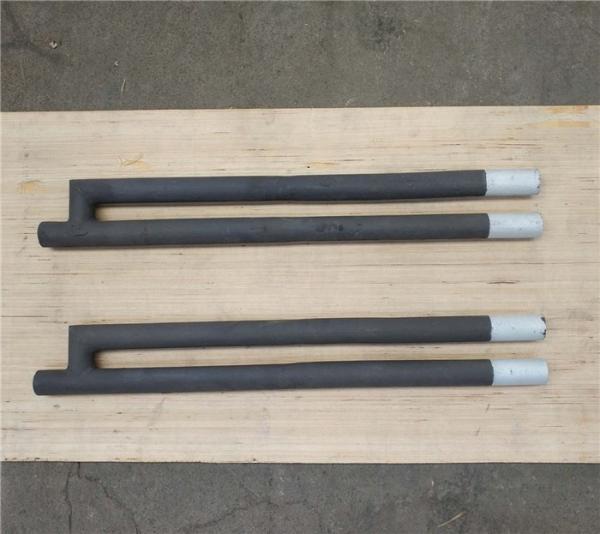

Grade 1500 Silicon Carbide Elements 450mm SiC Heating Elements

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : Spark Industry (Henan) Co., Ltd.

Delivery Time : 15 work days

Packaging Details : WOODEN CASE

Max Temperature : 1500°C

Operating Voltage : 220V

Maximum Bending Strength : 50MPa

Shape : U Shape

Heating Zone Length : 300mm

Resistance At 1000°C : 1.2Ω

Diameter : 12mm

Hot Zone Material : Silicon Carbide

Length : 450mm

Maximum Power : 3.5kW

Cold End Material : Molybdenum Disilicide

Thermal Conductivity : 150W/mK

Density : 2.7g/cm³

Cold End Length : 150mm

Place of Origin : China

Brand Name : SONGYU

Contact Now

G Type SiC Heating Elements

physical characteristics
G-type silicon carbide rods have a hard and brittle texture, are resistant to rapid cooling and heating, and are not easily deformed at high temperatures. Its thermal conductivity is 20 kcal/m · h · degree, and its linear expansion coefficient is 5 × 10 ^ -6/℃.

chemical stability
After long-term use above 1000 ℃, G-type silicon carbide rods can react with oxygen and water vapor, leading to a gradual increase in SiO2 content in the components and a slow increase in resistance, resulting in aging. Excessive water vapor can promote SiC oxidation and reduce the lifespan of components. Hydrogen can reduce the mechanical strength of components, while nitrogen can prevent SiC oxidation below 1200 ℃, but above 1350 ℃, it will react with SiC and decompose it. Chlorine gas can completely decompose SiC.

Material Silicon Carbide (SiC)
Shape Rod, U, W, H, Spiral, etc.
Resistance 1.2Ω-10Ω
Maximum Load Capacity 30-50W/cm²
Thermal Conductivity 120-200W/m·K
Application Industrial and laboratory furnaces, heat treatment equipment, etc.
Density 2.6g/cm³
Voltage 220V-480V
