Double Threaded Silicon Carbide Rod SiC Heating Element 300mm Length

Name: Double Threaded Silicon Carbide Rod SiC Heating Element 300mm Length
Brand: SONGYU
Price: 1 USD

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : Spark Industry (Henan) Co., Ltd.

Delivery Time : 15 work days

Packaging Details : WOODEN CASE

Length : 300mm

Maximum Surface Load : 9W/cm²

Hot Zone Length : 75mm

Max. Working Temperature : 1600°C

Diameter : 12mm

Chemical Composition : SiC ≥ 98%, Free Si ≤ 0.5%

Heating Zone Length : 150mm

Resistance At 20°C : 1.2Ω

Flexural Strength : ≥400MPa

Porosity : ≤15%

Thermal Conductivity : ≥45W/m·K

Cold Zone Length : 75mm

Shape : U Shape

Bulk Density : 2.7g/cm³

Place of Origin : China

Brand Name : SONGYU

Contact Now

SGR Type SiC Heating Elements

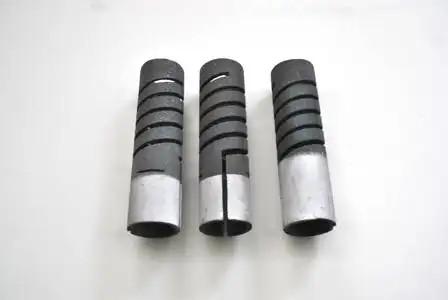

Double threaded rod is an electronic component made by precision calculation and special processing on the basis of U-shaped silicon carbide rod. It is designed to meet the needs of electric furnaces with small furnace space that cannot install normal U-shaped silicon carbide rod, and the temperature can reach 1500. Mainly used for heating kilns with special needs, its characteristics are: more energy-efficient, easy to operate, high operating temperature, and long service life.

Density	2.6-2.8 g/cm3
Product Type	Heating Elements
Resistance	1.2-2.5 Ohms
Maximum Power	500-3000 Watts
Max. Working Temperature	1600°C (2912°F)
Thermal Conductivity	100-120 W/m·K
