Grade 1600 Silicon Carbide Rod SiC Resistance Of 1000w Heating Element

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10-1000pcs

Delivery Time : 15 work days

Packaging Details : WOODEN CASE

Length : Customizable

Thermocouple Position : Centered

Diameter : Customizable

Material : Silicon Carbide

Maximum Watt Density : 40 W/cm²

Terminal Connection : Threaded Stud

Voltage : Customizable

Shape : U-shaped

Heating Element Type : Electric Resistance

Temperature Range : Up to 1600°C

Mounting Type : Horizontal or Vertical

Application : High Temperature Furnace Heating

Thermocouple Type : K Type

Insulation Material : High Purity Alumina

Place of Origin : China

Brand Name : SONGYU

Contact Now

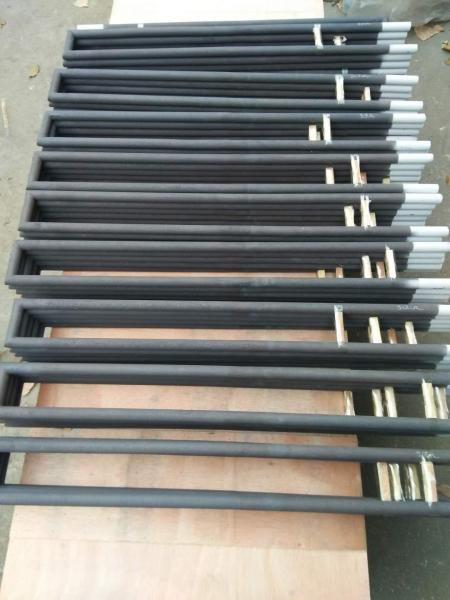

U-shaped silicon carbide rod


The U-shaped silicon carbide heating element is an extraordinary non-metallic high-temperature electrothermal device. Primarily composed of silicon carbide, it shines with remarkable characteristics. Boasting exceptional high-temperature resistance, it can maintain stable operation even in extremely hot environments, with a maximum tolerable temperature reaching approximately 1600℃. The distinct U-shaped configuration enables it to expand the heating area to the fullest within a confined space, notably elevating heating efficiency and delivering enhanced benefits for industrial processes. It also displays formidable oxidation resistance. When subjected to high temperatures, a compact layer of silicon dioxide protective film forms on its surface, functioning like a robust bulwark to block oxygen from further intruding into the interior, thereby considerably extending its lifespan. Furthermore, it possesses a swift heating rate. As the temperature rises, the resistance of the silicon carbide heating element increases, resulting in rapid heating after being energized. This not only saves heating time but also enhances production efficiency. Additionally, its unique shape makes installation in various electric furnaces extremely effortless. It can be flexibly arranged according to actual needs to meet the

installation requirements of different industrial settings.

Application High Temperature Heating Elements
Flexural Strength 250 - 300 MPa
Thermal Shock Resistance: Good
Chemical Resistance Excellent
Shape Rod
Compressive Strength 2000 - 2500 MPa
